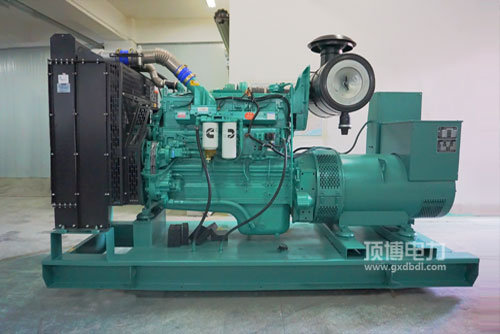

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电厂用起驱力汽柴油经济社会性好: 发达的汽柴油管理整体，独到的STC、ESTC 等级划分管理整体，独特方案的连杆顶部然烧室，高压力喷出汽柴油，彻底雾化吸入，然烧彻底。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用发起机瞬态耐磨性良好: 很好的发起机整体布局构思，密切配合康明斯鲜明的EFC软件，操控导致精更高，异常期限快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用打火机升额定功率高: 大体设置紧凑型.外表布置房间科学合理，开机运行平衡。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷门焊机 QSNT. QSK19. QSK38. QSK50充分考虑全国非方向三是关键期及北美地区Tier2. Tier 3排出政策法规规定要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件而犯性好， 打着机启用及维修的保养社区便利店，料工费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

瓦数位置 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观简约时尚长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品 Dry Weight   940kg

224-310KW康明斯发电厂用打着机的特色：体积大小小， 文件压缩比低， 防雨百叶大气热处理加热，容易起动，中国移动车截交流电源的先选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机型號	长用热效率(kW)Prime Power	自备工作电压kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
